E3.fluid - Hydraulic, Pneumatic, Cooling and Lubrication System Design
E3.fluid is the solution for designing and documenting all fluid systems. It is a complete, easy-to-use solution with core functionality optimized for the development of hydraulic, pneumatic, cooling and lubrication systems.
Consistent representations of electromechanical devices in pneumatic schematics, electrical schematics and installation diagrams
Design rule checking with ptimized functionality for the development of hydraulic, pneumatic, cooling and lubrication systems
Hydraulic, pneumatic, cooling and lubrication systems activated by electric motors or pumps require integrated handling of fluid and electrical designs. Our solution approach enables fluid engineers to detail and document their hydraulic, pneumatic, cooling and lubrication schematic designs. to be developed independently or fully integrated with electrical control systems.
Evaluate Zuken Software
Start Your Test Drive Today
- Test Drive
June 20, 2019
Cable Design Software Evaluation
Test Drive, Zuken USA
Test Drive E3.series for Cabling
- Test Drive
June 21, 2019
Electrical Panel Design Software Evaluation
Test Drive, Zuken USA
Test Drive E3.series for Panel
- Test Drive
June 21, 2019
Wire Harness Manufacturing Software Evaluation
Test Drive, Zuken USA
Test Drive Harness Builder for E3.series
E3.fluid functionality overview

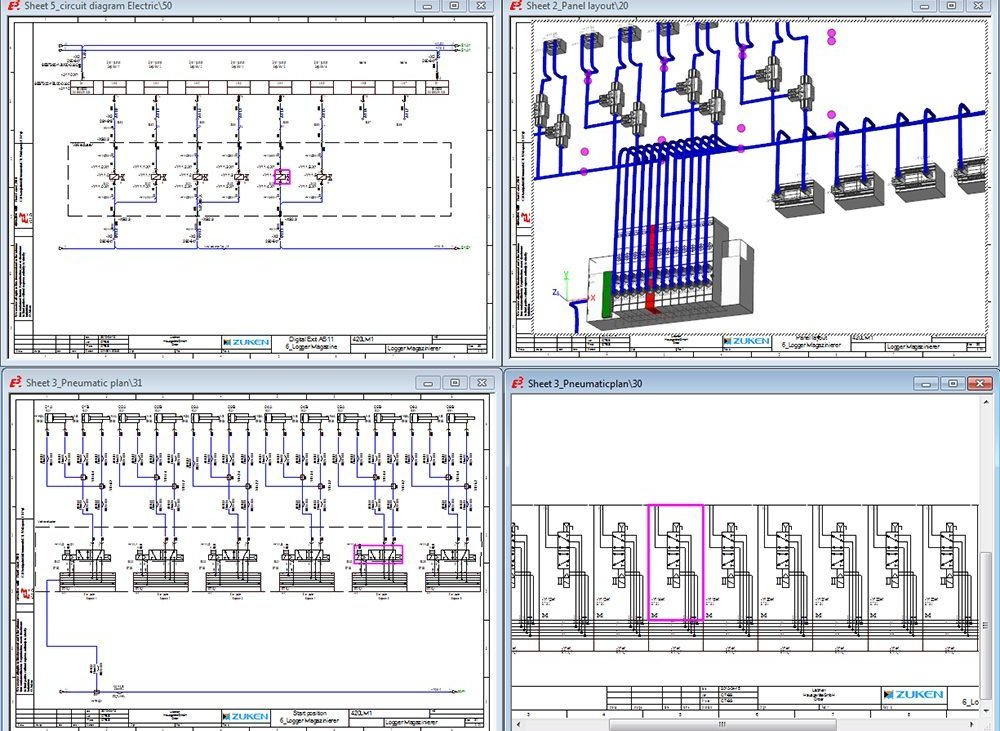

E3.fluid can be used to develop standalone fluid schematics or combined with the electrical schematics to provide a mixed fluid and electrical design.
Standalone fluid design
E3.fluid can be used to develop standalone fluid schematics or combined with the electrical schematics
Mixed fluid and electrical designs
- Cross-reference between electrical and fluid design
- Intelligent sheets prevent design errors (only fluid designs allowed on fluid sheets)
- Combined bills of materials
Intelligent parts library
- Part usage tracking
- Extensive symbol library included
Design automation
- Automatic connections (Auto-connect)
- Multiple design rule checks
- Design reuse with predefined sub-circuits
- Automatic assignment of quick connectors to hoses and tubes
- Prevent incorrect hose and tube sizing
Multiple views

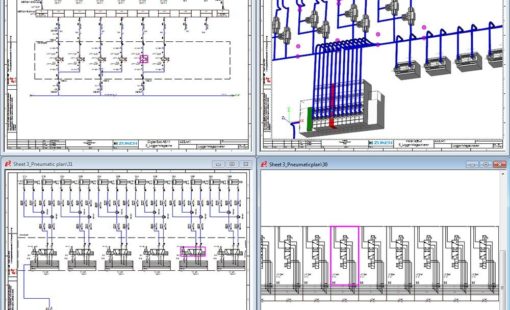

E3.fluid+ allows users to create multiple views of their equipment such as a valve shown in both the schematic and manifold drawing. Making use of E3.series’ object oriented functionality E3.fluid ensures all documentation is always correct, irrespective of where modification are carried out
