Easy Generation of Customized Reports
The E3.ReportGenerator is a free tool for creating customized reports from E3.series projects in a few simple steps. These reports can be configured according to various parameters and exported in various formats. The tool requires no license and can be launched directly from within E3.series.
Various output formats are available
Creation and customization of templates
Licence-free use as of version E3.2019
Editing Reports using the Designer

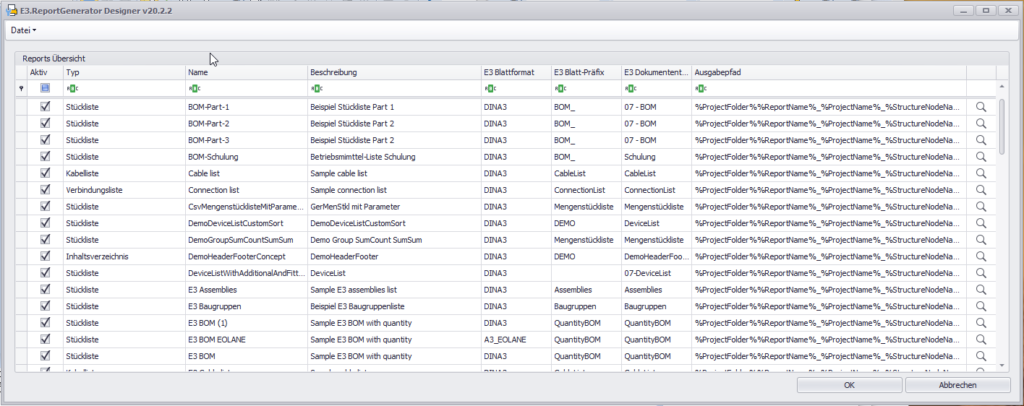

The E3.ReportGenerator Designer can be used to customise existing report templates or to create your own customer-specific templates. The Designer provides a graphical overview of the selected report structure where it can be customised and edited. Images and bands for operating materials, connections, etc. can be inserted. Subsections can be added to the bands, for example, to display pins or wires.
Built-in Field List
All attributes of an E3.series object can be used in the report via the built-in field list. With a simple drag & drop into the corresponding band, they will be displayed in the report. The sections of the report can be grouped and sorted for a better overview.
Exporting Reports using the Creator

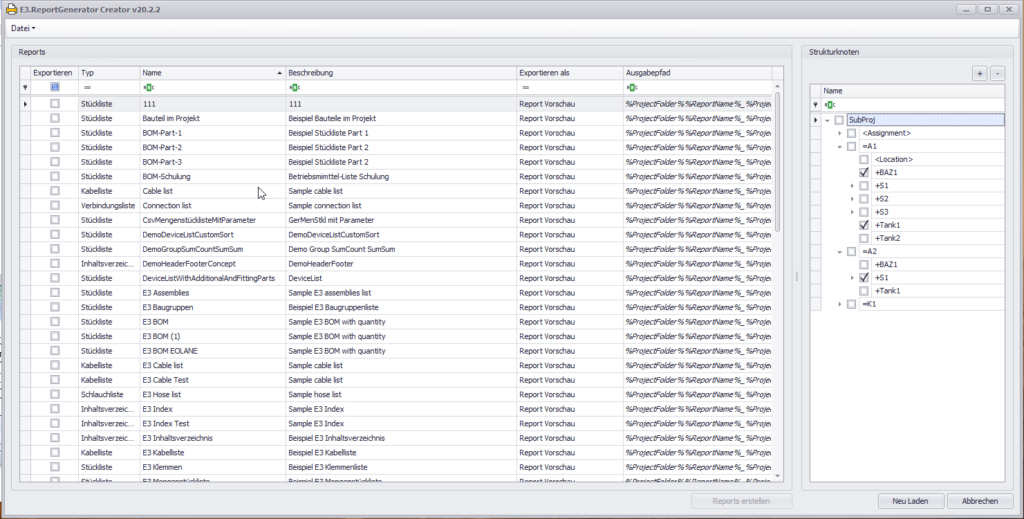

Once the desired report layout has been achieved in the Designer, the report can be generated and exported via the Creator. A particular advantage is that the report can also be generated for certain structure nodes only. In the preview screen, multiple selections are possible, whereby different reports can be generated at the same time.

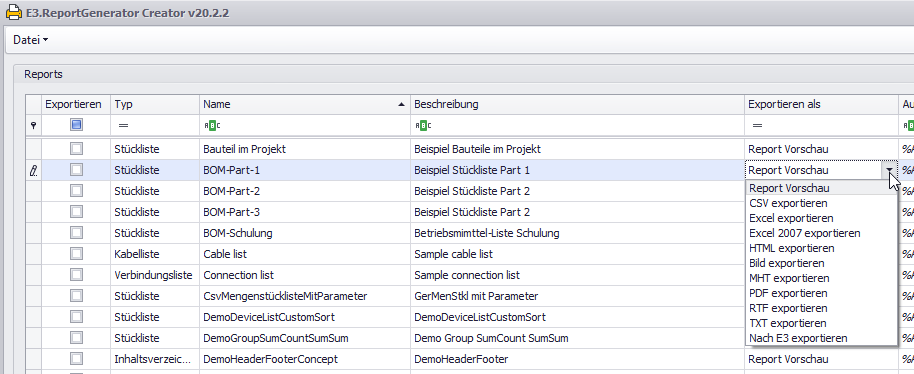

Available Output Formats
- E3 sheet
