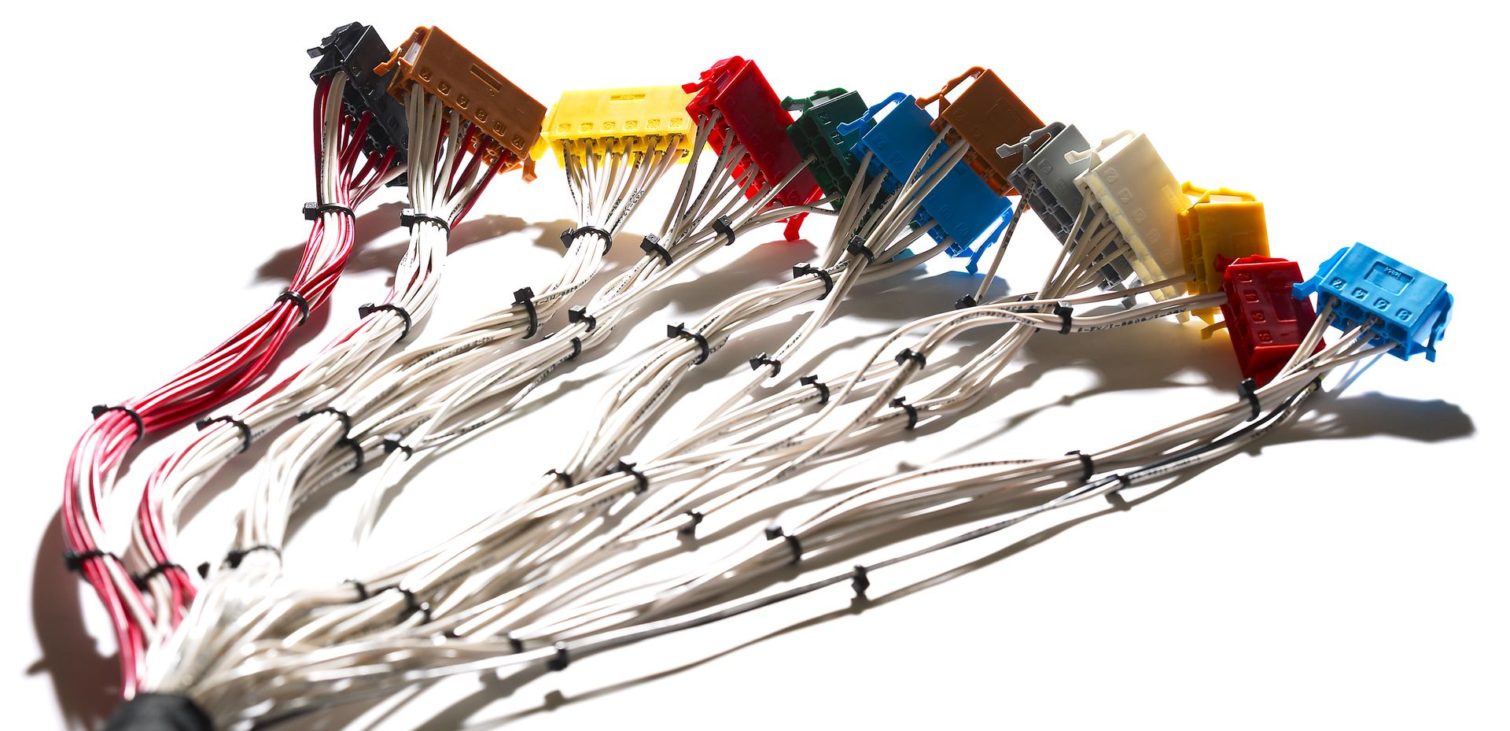

Cutting, crimping, labelling and bundling

Export of wire lists for Komax wire processing machinery


E3.ExportToKomax exports wire lists for Komax automated wire processing machines. It exports wire list data in a .csv format for import into Komax TopConvert which is the tool used for converting CSV files into the WPCS (Wire Processing Communication Standard) format used by Komax machines.

Data export

Export of wire list data in a .csv format

data import

Import of .csv wire list into Komax TopConvert

data conversion

Conversion of .csv files into the Komax wire processing communication standard format WPCS

Before generating the output files, E3.ExportToKomax performs comprehensive check routines to make sure all wire are connected and available on the Komax machine in the required length range. Wires are output in separate bundles for each device and sequenced according to X, Y and Z coordinates.

Checks and Outputs

  • All wires connected
  • All wires available on the Komax machine
  • All connector pin terminals available on Komax machine
  • Checks the length(s)
  • Upper warning limit
  • Lower warning limit
  • Wires output in bundles
  • One bundle for each device
  • Splitting the bundle
  • All wires with the same assignment on a priority location
  • All wires with the same assignment outside the priority location
  • Sequence of wires according to X, Y, Z coordinates
