E3.panel – Documentation and design of electrical control panels

Zuken’s E³.series is used for documenting and detailing electrical and fluid design projects. Its flexibility supports the entire process from definition and design, through manufacturing and maintenance. Its unique object-oriented architecture ensures all stages of the design are fully synchronized. E3.panel enables full documentation of control panels while the built-in design rule checks prevent errors from entering the manufacturing phase. E3.panel+ is an add-on to E3.panel that provides automatic wiring within the panel and additional manufacturing capabilities.

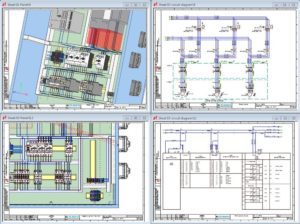

Working in either two or three dimensions, E3.panel is completely integrated with E3.schematic and E3.cable. Changes made in the panel or schematic are immediately reflected across both and users can easily navigate between the two. Simple slot and mount functionality means electrical engineers do not need to use complex 3D MCAD systems.

Special functionality in E3.panel

• Integrated schematic and panel design
• Schematic panel navigation
• Multiple panel sheets
• Shared panel sheets
• Automatic snapping placement
• Clash detection
• Hazard avoidance
• 2D and 3D design
• 3D placement in free space
• Fluid control panels

• Automatic routing
• Shortest path algorithm
• Segregation
• Duct fill capacity check
• DXF import and export (punching, drilling and cutting detail)
• Support for hose, tubing and piping
• Drill-hole definition for duct and DIN-rail

Manufacturing support
• Cut list
• Komax integration
• Perforex integration
• 3D STEP AP 212/214 output
