Board Viewer Advance for CR-8000

Share and review native design information

Enhanced Collaboration for Design Reviews

Board Viewer Advance is an extended version of the free Board Viewer for CR-8000. In addition to the free Board Viewer functionality it provides enhanced design review support for teams share to enhance communication during product development.

comparison

Graphical comparison of designs

Cross-probing with Design Gateway, Circuit DR Navi and other CR-8000 product

Flexible and configurable layer and net display control

Reports on placement status and trace length

Board Viewer Advance for CR-8000

This is an extended version of the free Board Viewer for CR-8000.  In addition to the free version, it provides owerful features, such as comparing designs and access to design check results, reduce product development time and ensure design quality.

Support for cross-probing to other design tools improves design collaboration and allows effective design reviews at any time during the design process.

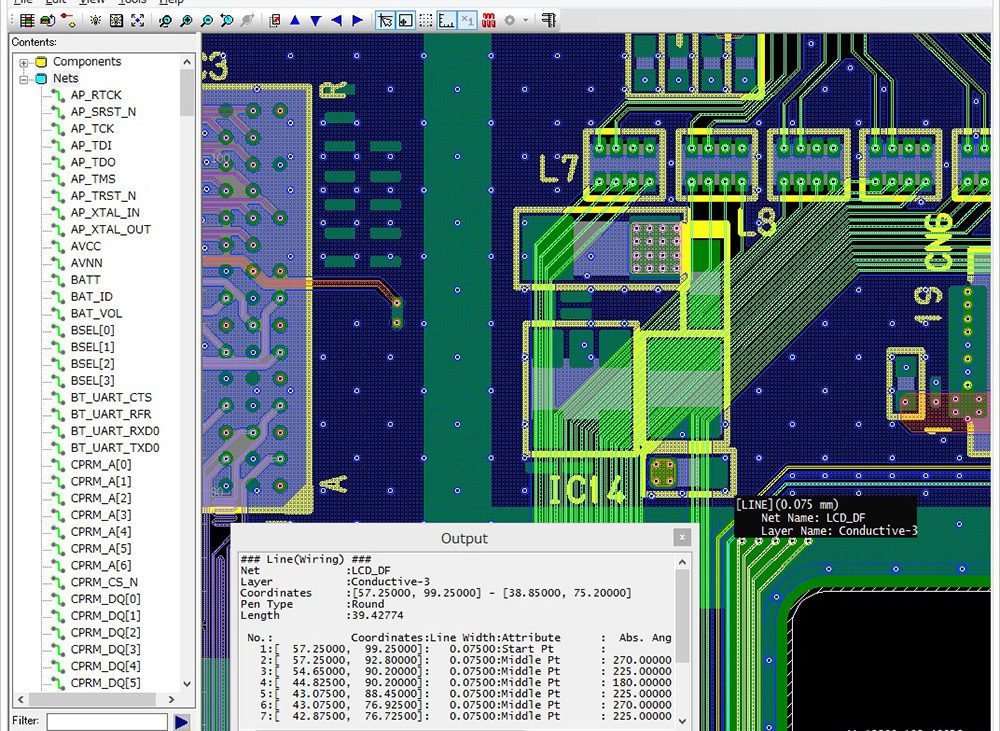

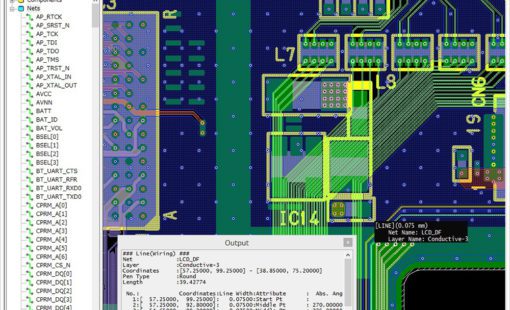

Board Viewer Advance
Board Viewer Advance allows multiple users to share, analyze and review native design information

Features include:

  • Importing design and manufacturing rule check results
  • Support for graphical comparison of two designs
  • Support for cross-probing with Design Gateway, Circuit DR Navi and other CR-8000 products
  • Flexible and configurable layer and net display control
  • Reports on placement status and trace length
  • Design feedback reflected automatically in layout
  • Multiple user design and review access
  • All features available in the free Board Viewer
