The new E3.ReportGenerator is a free tool for creating customised reports from E3.series projects. It can be installed license-free and started directly from E3.series. The E3.ReportGenerator features the Creator for creating the reports and the Designer for editing and graphically customizing the reports based on several parameters. There are many different output formats available. In this blog, I will explain how to create and output customised E3.series reports in just a few simple steps.

Step 1: Starting the tool and loading the sheet formats

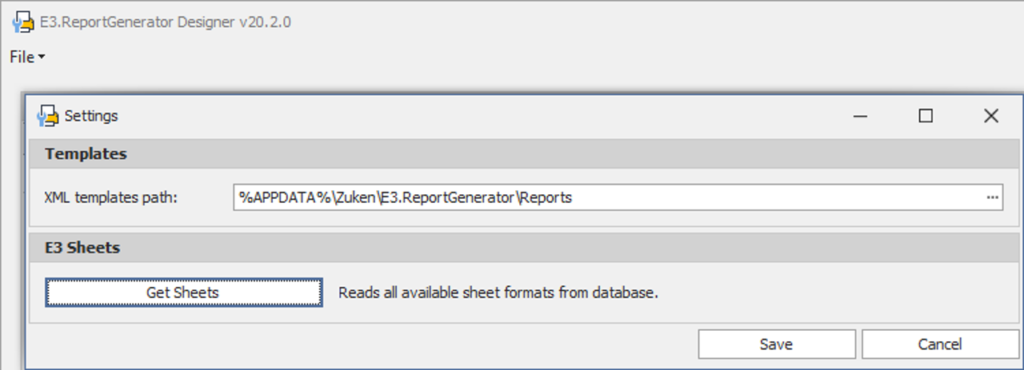

First, we have to launch the E3.ReportGenerator Designer directly from E3.series and load the available sheet formats from the E3.series database.

create customised e3.series reports

Step 2: Setting the baseline information

In the next step, we set the report type, name, and description. Further specific E3.series information is displayed in the overview: sheet format, E3 sheet prefix, E3 document type, and output path. By checking the box “enabled” in the first column, the report will be available in the Designer and Creator.

Step 3: Saving the report template

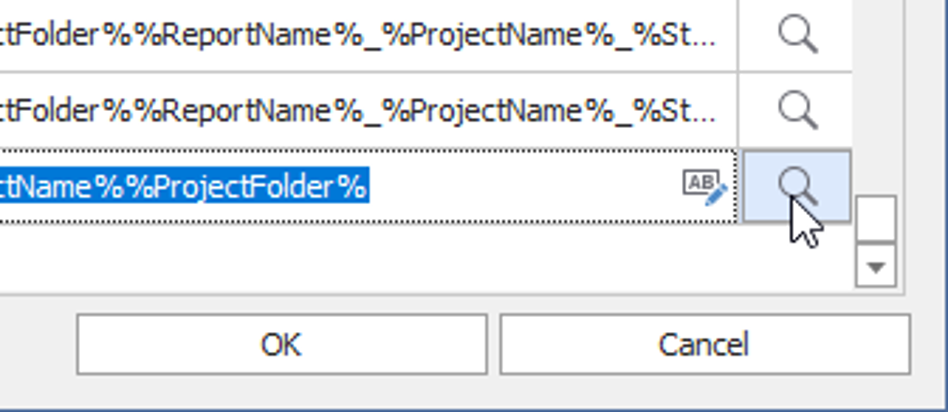

Afterward, we save the new entry and restart the Designer to customize the empty template graphically. With a click on the magnifying glass, the created template can be edited straightaway.

Step 4: Defining the page size

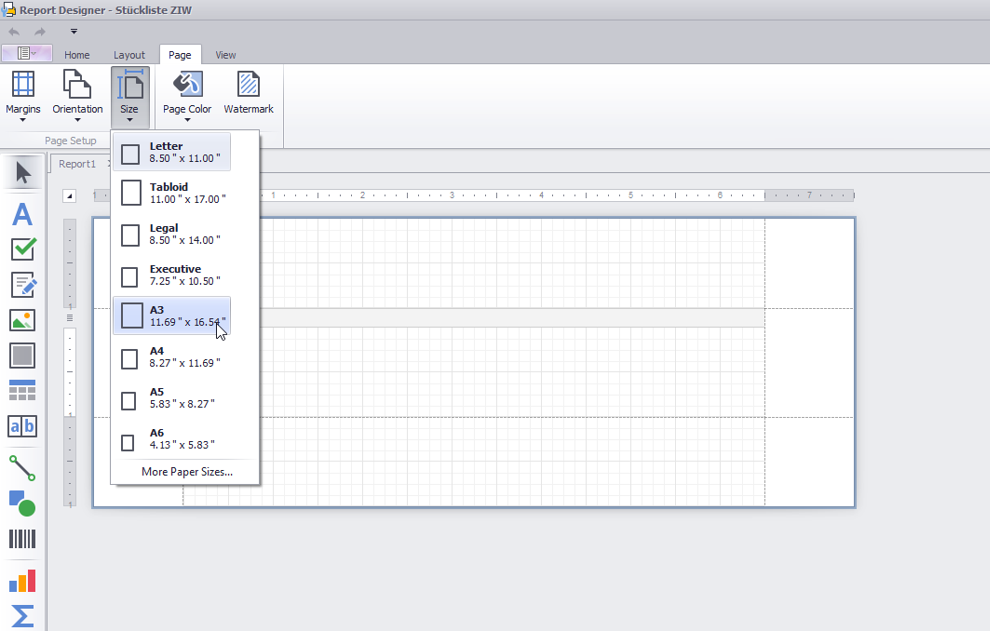

We now define the actual size, the page size, of the report – the sheet size from step 1 referred only to the sheet in E3.series. I’d like to point out that the page margins must enclose the sheet frame of the E3 sheet so that the report fits into the drawing area.

customised e3.series report size

Step 5: customising the report layout

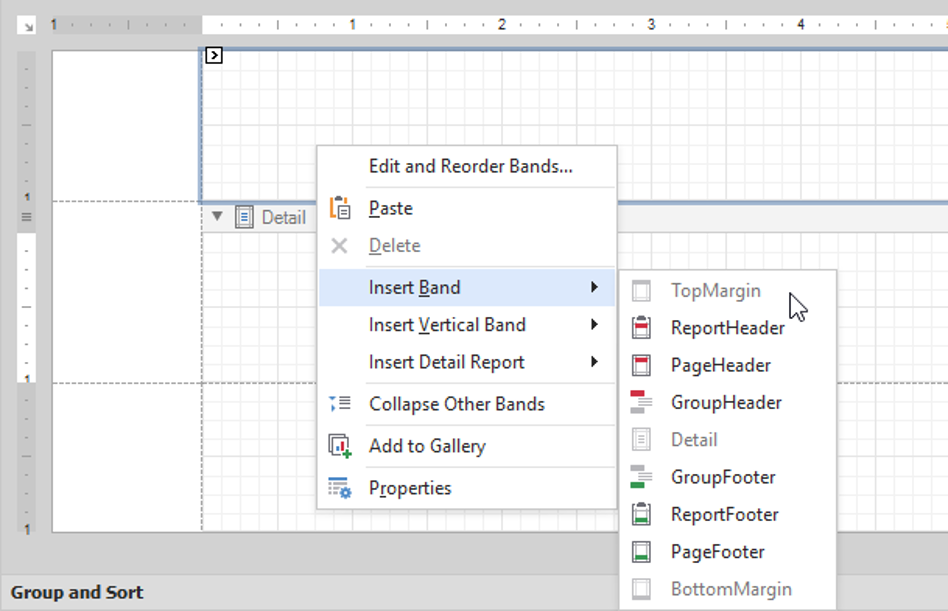

Now that we entered the basic settings we can move on to the graphic layout of the report. We can add various bands and detail reports to the report layout within the Designer. The device properties from the field list can afterward be inserted into these bands (headers, footers, etc.) via drag and drop. This provides the foundation for a report.

e3.series report graphic layout

Step 6: sorting & grouping

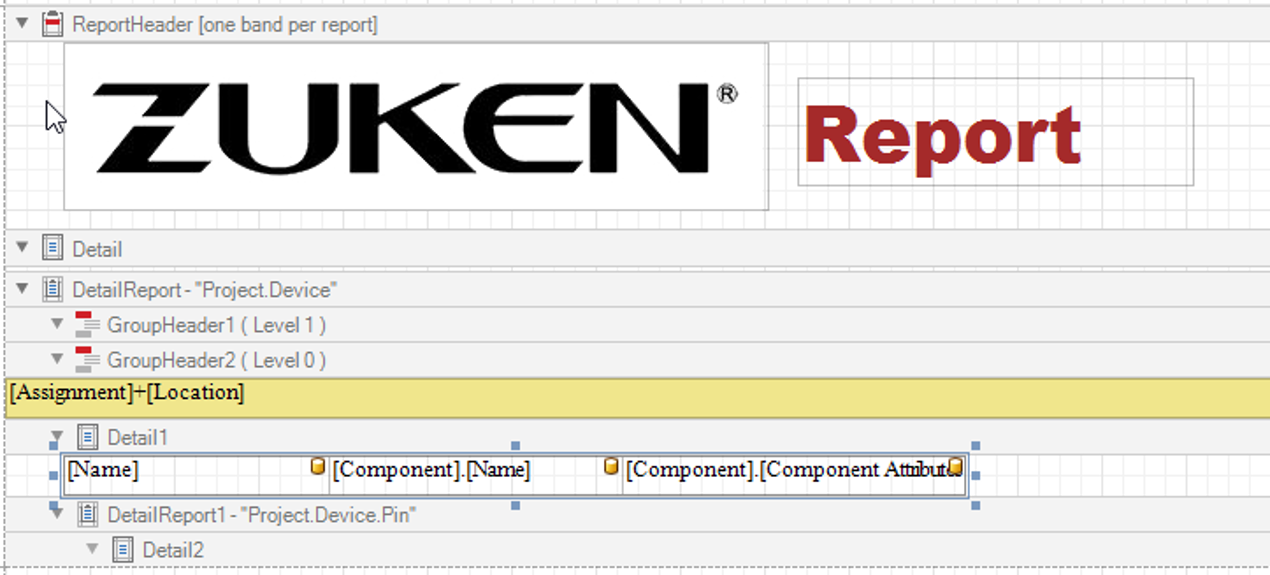

If needed, we can group the report by assignment and location.

Step 7: adding formatting

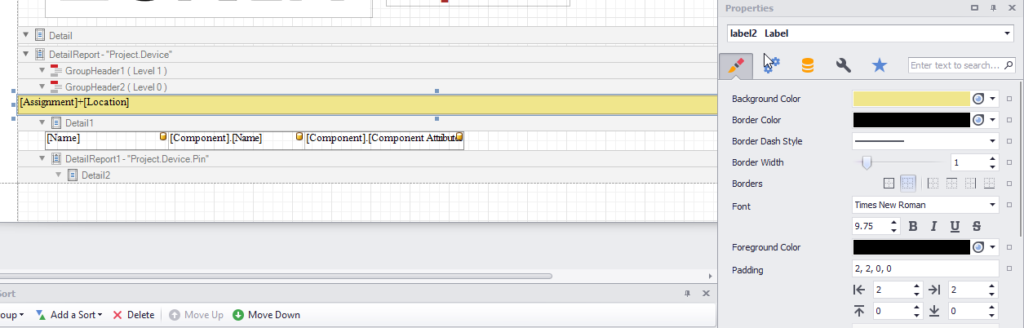

The E3.ReportGenerator offers the option to add formatting for text and table rows under properties. At this point, we need to save the report template and close the Designer application window before exporting the report in the last step using the Creator.

add formatting to a customised e3.series report

Step 8: Output of the finished report

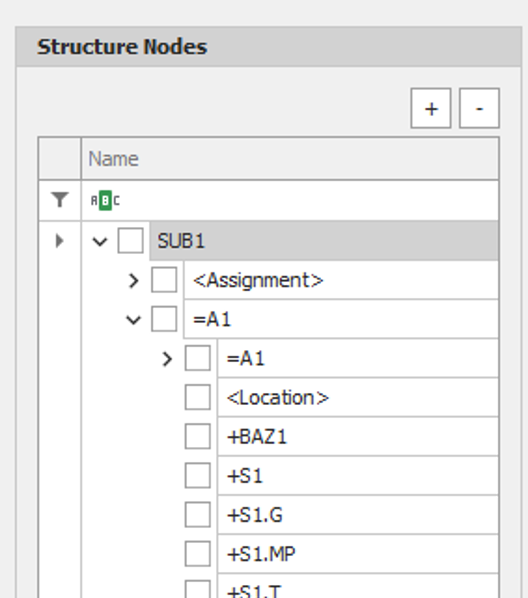

In the final step, we need to open the report in the Creator. A significant advantage here is that the report can be output only for certain structure nodes. We can select the output formats in the preview mode. Optionally, watermarks (e.g. “confidential”) and scaling can also be applied.

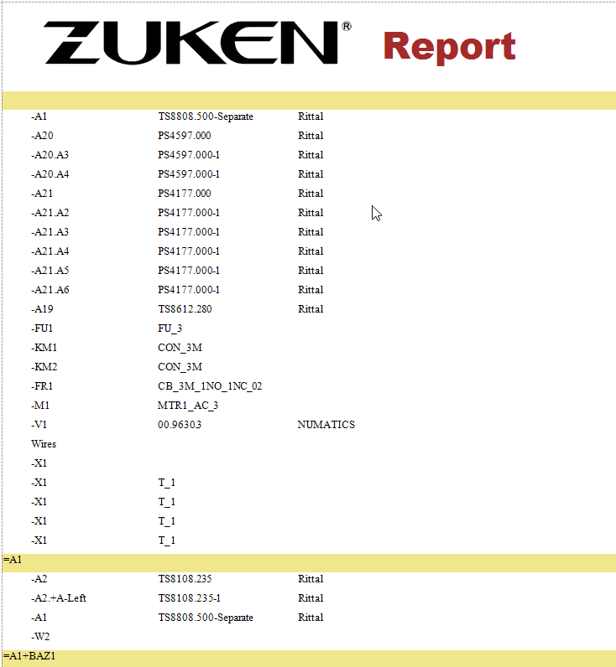

Finally, we select the output format and generate the report.

customised e3.series report for structure nodes
