E3.series 2018 Place Table Symbol Enhancements

Tech Tip: E3.series 2018 Place Table Symbol Enhancements

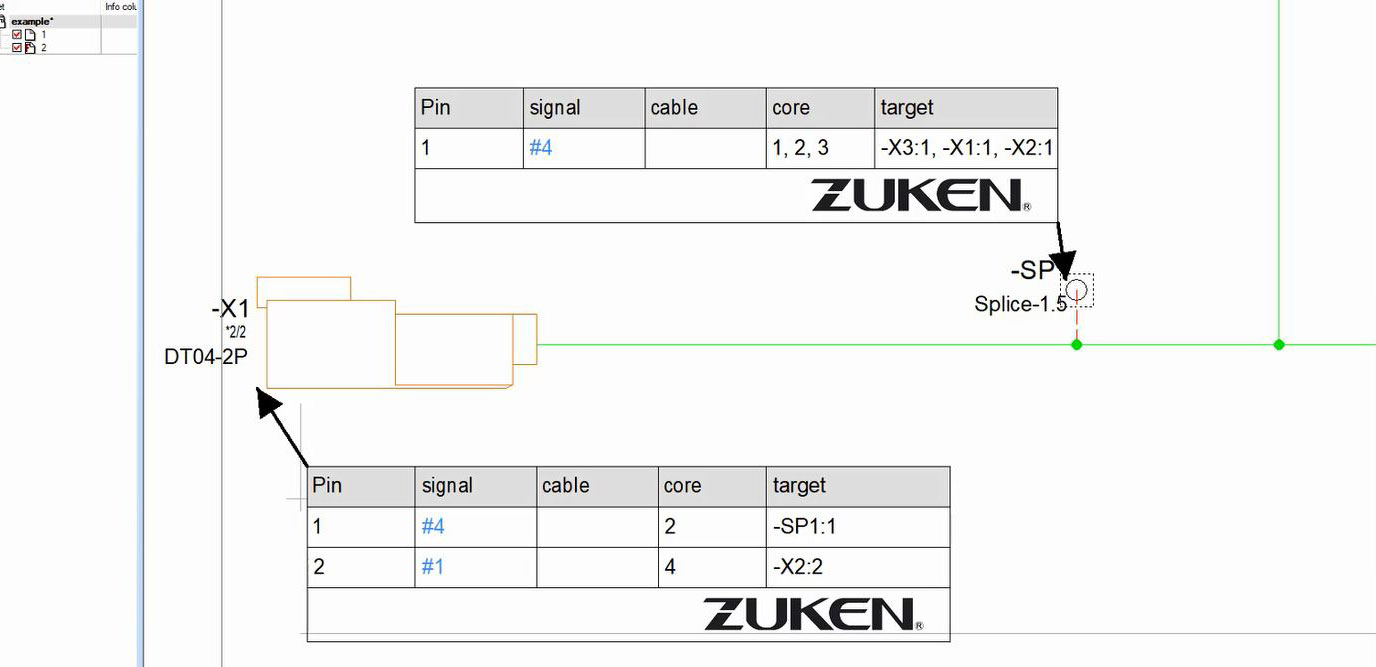

In E3.series 2018, table symbols are now supported for all devices on formboards. Now when you select any device on the formboard, you’ll find the command Place Table Symbol is now in the context menu.

Watch the video below for more details.

Mike Petersen
Mike Petersen
Mr. Petersen has been with Zuken since 1990. His broad range of knowledge and skills has enabled him to take on various roles dealing with hybrid/MCM tools and technologies, 3D PCB design and wire harness design, and tool deployment. Throughout his tenure with Zuken, his main responsibilities have included applications engineering with special attention to integrating solutions into customers’ working environments. Since 2004, Mr. Petersen’s area of focus is on wire harness design, both in pre-sales and integration and deployment roles, with special emphasis on tool integration with E3.series.
