Tech Tip: Define Complex Slot Areas on Your Enclosure with E3.series 2023

Are you looking to create more precise and intricate slot areas on your enclosure designs? If so, you’re in luck! Starting with E3.series 2023 SP3 (24.30), users can now define slot areas using polygons, offering greater flexibility and accuracy.

The Power of Polygon Slot Areas

This new feature allows you to define slot areas that can be placed on all sides of an enclosure, breaking free from the previous limitation of rectangular shapes. Additionally, polygon slot areas are particularly beneficial for enclosures with complex geometries. This enables designs that better match real-world applications.

Step-by-Step Guide: Defining a Polygon Slot Area

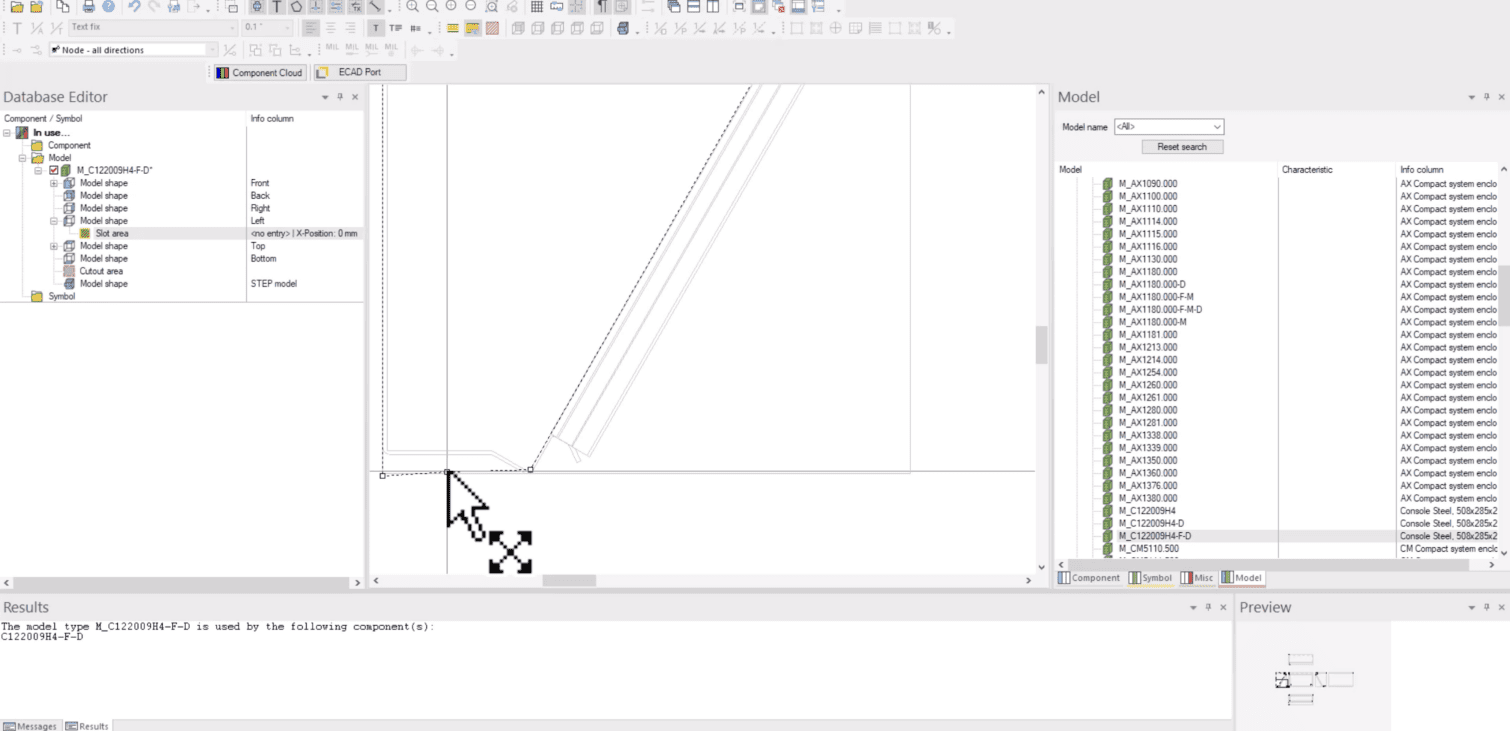

In this Tech Tip, we’ll walk you through defining a slot area using a polygon for a slope-top enclosure. By using polygonal slot areas, you ensure that your design reflects real-world constraints, preventing the placement of devices that wouldn’t fit on the actual enclosure. Consequently, this added precision brings your enclosure design closer to a true digital twin, helping to avoid costly manufacturing and assembly errors.

Get Started with E3.series 2023 SP3

Lastly, are you ready to improve your enclosure design? Watch the video recorded using E3.series 2023 SP3 (24.30) and master the art of defining polygon slot areas for your next project.
