Tech Tip: Using Templates to Generate Area Fills
Menu
When generating area fills, designers must consider the polygon as a work in progress. Using templates to control the automatic generation of area fills allows the design to focus on more critical routing issues.

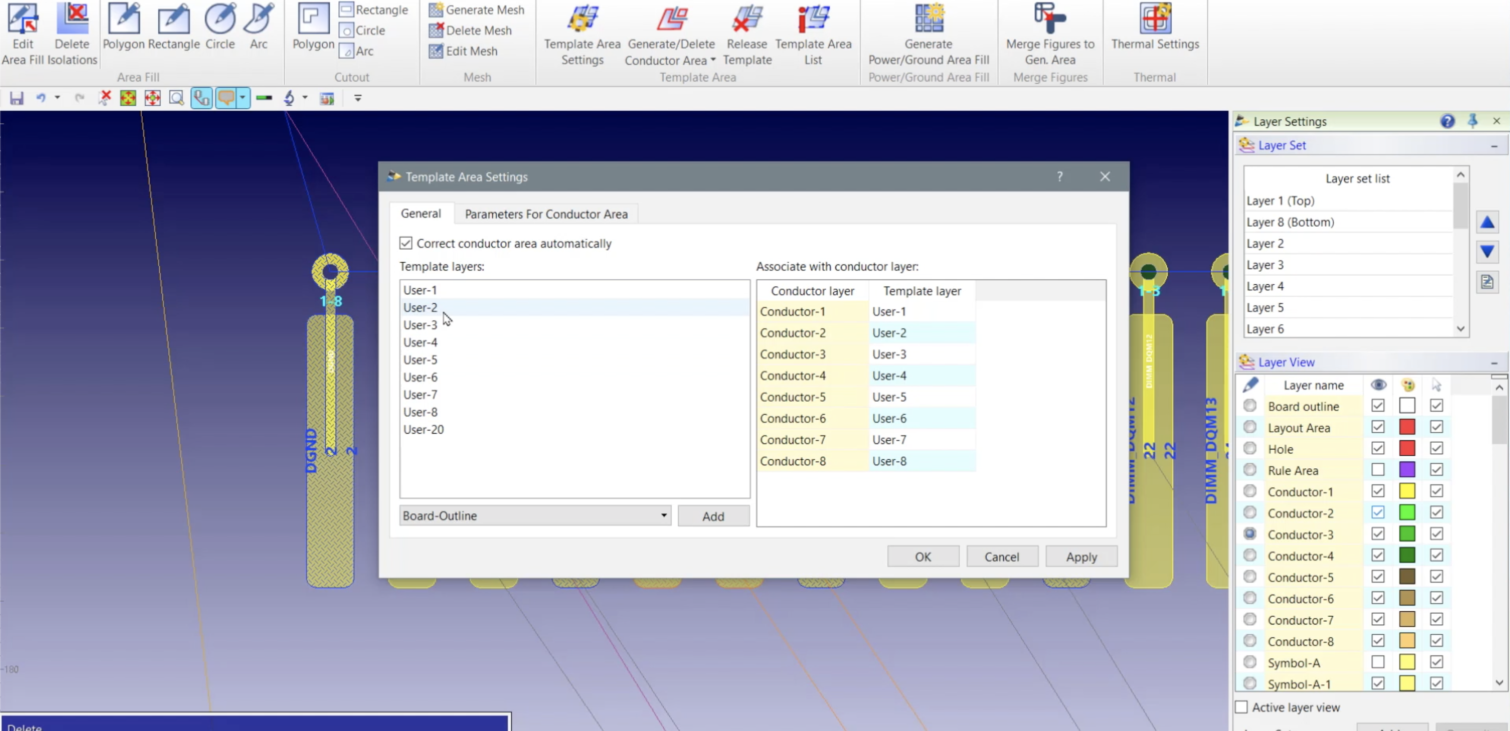

You must ensure that you are receiving maximum coverage when routing wires when generating simple area fills for large co-planer areas. Sometimes this is overlooked. Creating templates to control area fills in CR-8000 Design Force helps ensure copper is always up to date, meeting relevant design rules and maximum area coverage.
This video explains how using templates to control area fills in CR-8000 Design Force can help ensure copper is always up to date meeting relevant design rules and maximum area coverage.
See more of our Tech Tips here!
-
Applications Engineer
Andy Buja supports many disciplines of the Zuken Solutions family. In addition to providing both post and presales support to Zuken Customers and Partners, he focuses on crafting Zuken Solutions to meet emerging technology requirements. Mr. Buja has been a member of the Zuken team and its predecessors since 1985.
