Design Gateway Circuit Difference

Tech Tip: Design Gateway Circuit Difference

Menu

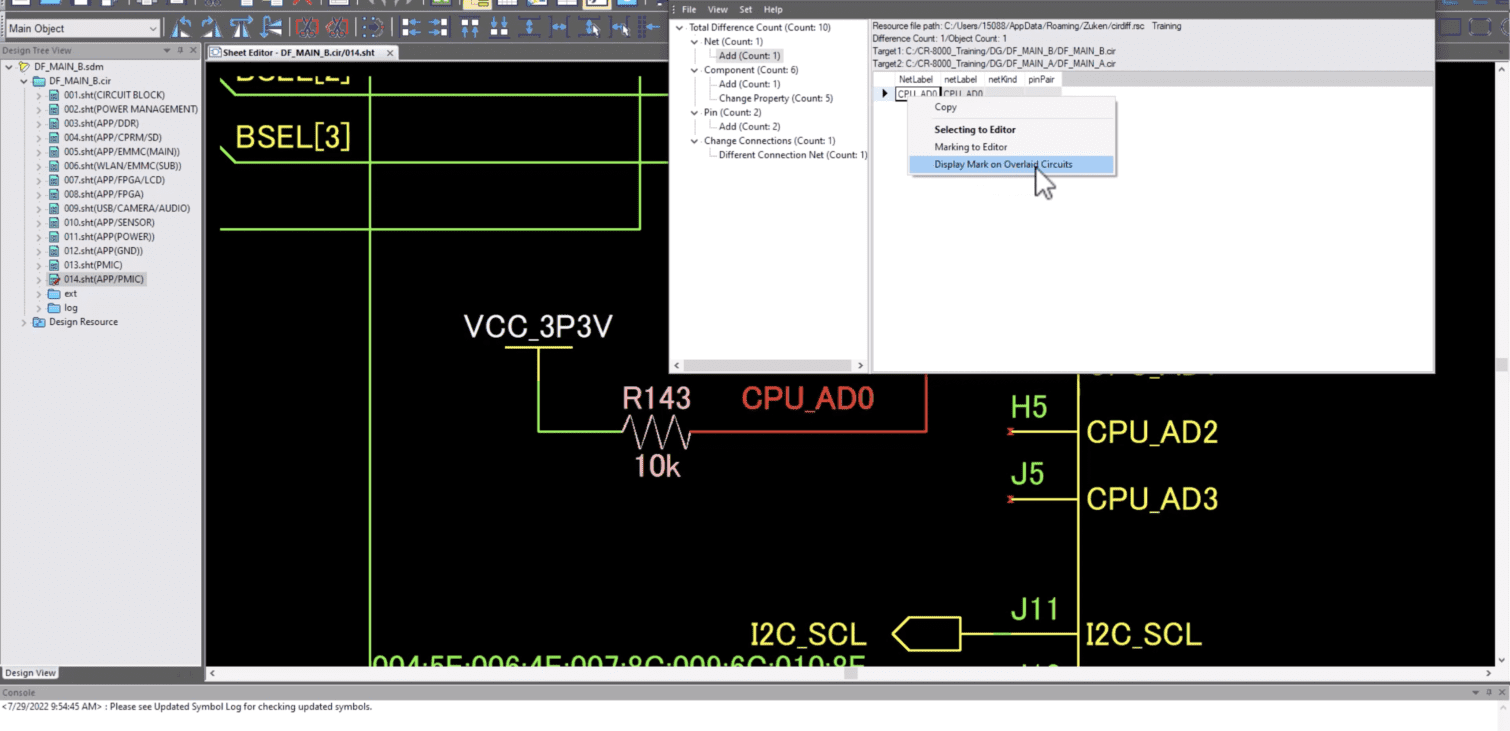

Design Gateway has a tool to help you compare two schematics and highlight their differences.  The Circuit Difference tool is a great way to check different schematic revisions.  The differences are listed as Add, Delete, or Change. You can cross probe to the differences in the Design Editor schematic or the Overlay Difference GUI which lays the two schematic sheets over each other to compare.

When revising a schematic, it is important to check the changes against the previous revision.  This will ensure your changes are complete and accurate. Sometimes you just want to check the differences between schematic revisions to see exactly how they differ.  The Circuit Difference tool in Design Gateway is a fast and easy way to compare changes between two schematics.

Circuit Difference compares two designs and outputs their differences in the following items:

  • Additions and deletions of sheets
  • Additions, deletions, movements, change properties for components
  • Change properties for component pins
  • Additions, deletions, and movements of net segments
  • Changes in circuit connections
