Tech Tip: How to Use the Automatic Placement of Wire Charts Feature

Streamline Wire Chart Placement with One Click

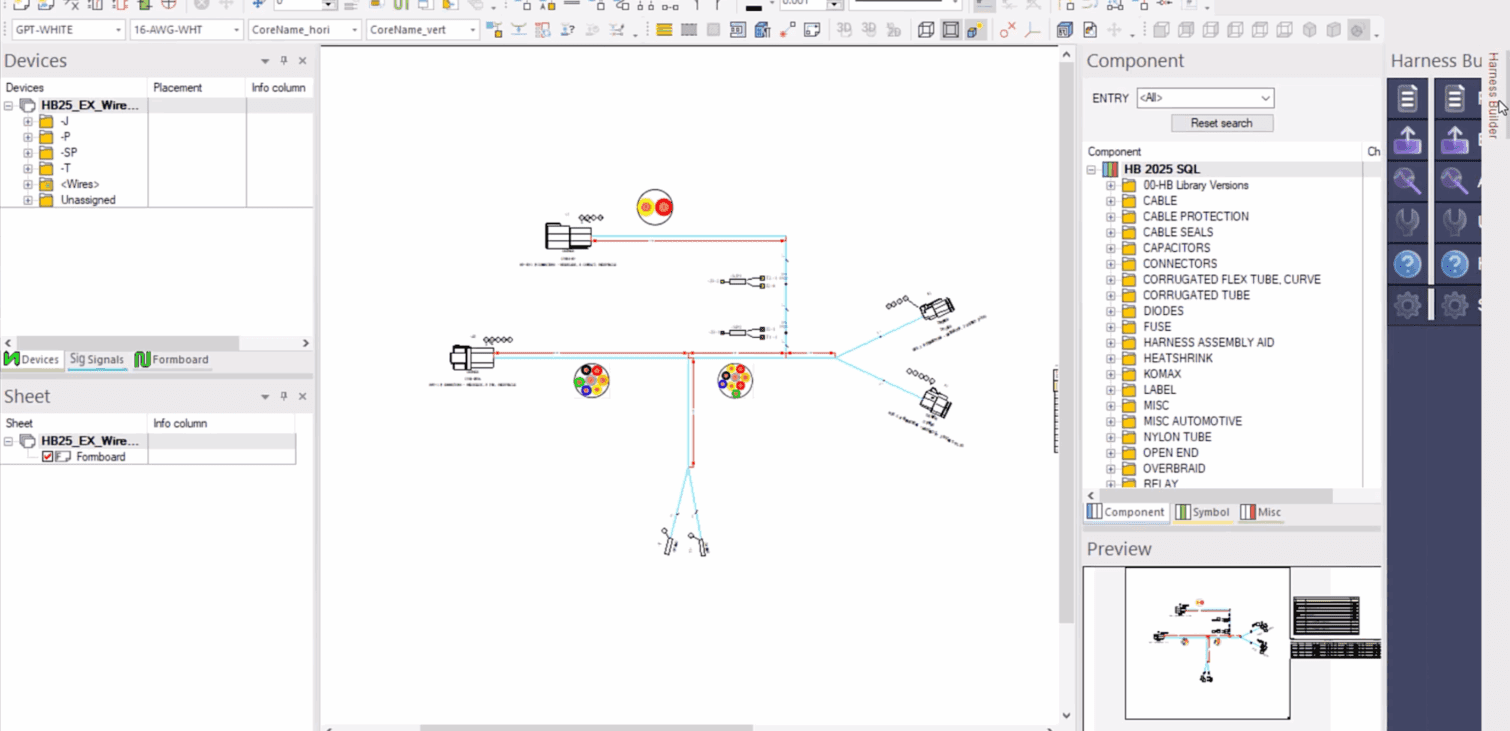

E3.series Harness Builder 2025 introduces a powerful new feature: Automatic Wire Chart Placement. This enhancement makes placing multiple wire charts on formboards faster and easier.

Why Wire Charts

In E3.series, wire charts display each connector’s pin-by-pin wiring information, such as wire name, color, gauge, and pin terminal. These connector tables are typically placed next to connectors in engineering drawings to help technicians reduce errors during installation.

When to Use Automatic Wire Chart Placement

Whether you’re starting fresh or updating an existing design, this feature ensures your wire charts are accurately and efficiently placed without manual intervention. Instead of clicking on each connector to automatically generate the table one by one, do it in one click! It’s a must-have for speeding up your wire harness design workflow.

This video was recorded using E3.Series 2025 (V25.34) Harness Builder 2025 (V25.02.01)
