CADSTAR Schematic Capture

Schematic Entry – CADSTAR Schematic Capture

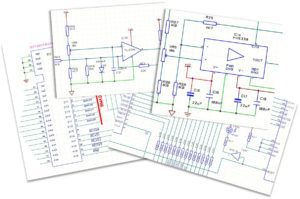

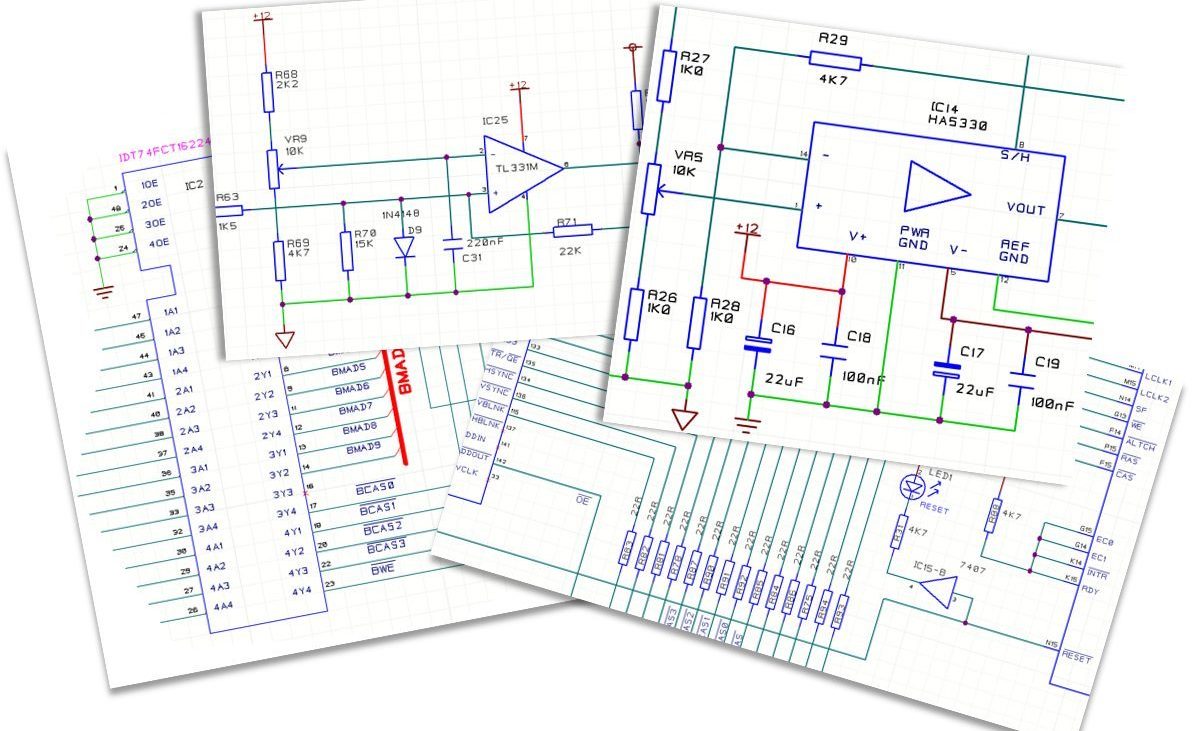

CADSTAR Schematic Capture provides a fast, efficient way to capture design intent, rules and constraints for smooth and error-free transition to PCB layout for product realization.



Top features and benefits

  • Easy to use, with intuitive user interface common to all CADSTAR programs
  • Integrated environment allows design changes to be efficiently transferred between applications
  • Access online library of 250,000 parts to reduce time in library development
  • Design tree view simplifies management of multiple circuit instances and other design data
  • Meet high-speed performance requirements with integrated constraint management system
  • Save time with reuse of known-good circuits from reuse library or from other designs
  • Define placement of critical components to optimize board performance early in the design process with Placement Planner
  • Powerful part selection features to support both graphical and parametric search engines
  • Complete support of design variants, including display control for accurate documentation
  • Improve implementation time with design import support from other layout systems such as Orcad, PCAD, Protel and PADS
