Dragon EX - auto/interactive routing for CR-8000 Design Force

Dragon EX for Design Force empowers designers with simultaneous access to Zuken’s advanced interactive and automatic routing capabilities

Specify multiple instances of strategy-driven areas

Analyze potential obstacles

Automatically create strategies based on objects and rules defined

Simultaneously autoroute the design

Multi-instance, interactive and automatic routing

During board layout, users can specify multiple instances of strategy-driven areas and simultaneously autoroute the design. This significantly improves design completion times.

Users specify a routing strategy within each area defined with Dragon EX. Using an in-built routing consultant, they can analyze potential obstacles impacting the router and automatically create strategies based on objects and rules defined in the design. Dragon EX creates fanouts or escape routing patterns to simplify implementation and improve the routability of high pin-count devices.









CR-8000 Design Force integrated router
Integrated routing within Design Force
CR-8000 Design Force Dragon EX - Automatic Routing

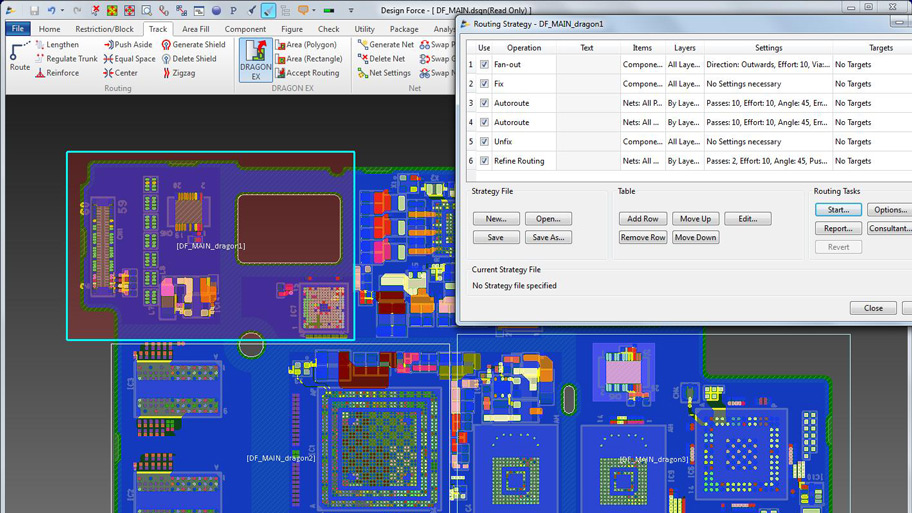

Multiple instances of strategy-driven areas
