Tree Functionality - Overview
Using the tree functionality within E3.series it is possible to arrange, structure and display user-defined trees.
The following chapters contain detailed information on:
-
Display of trees (filter, etc.)
Note
-
The project name is highlighted in gray as soon as the project has a structure assigned and the respective tree is not sorted according to this structure (Use given structure option in the Tree Control Properties dialog), but by other criteria (Sort by option). This shall visually show the user that operations, which have an influence on the project structure (e.g. Copy&Paste, Drag&Drop) are not possible in this tree.
-

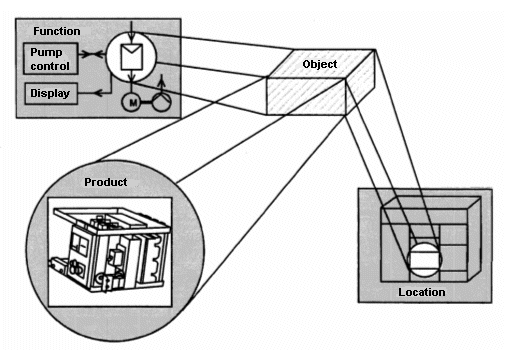

Users don't have to necessarily work according to the IEC Standard 81346. They can configure their trees as desired.
