Sharing Shared Sheets

This functionality is only available when a E3.panel license is present!



'Share' Base Sheets with Shared Sheets

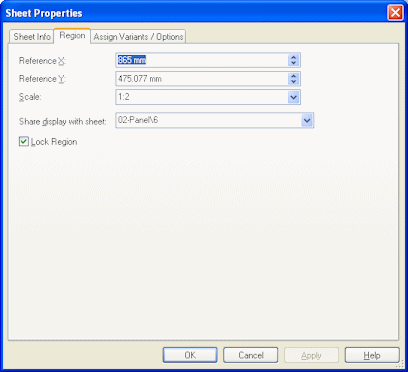

It is possible to 'share' shared sheets with other base sheets using the Region tab in the Sheet Properties dialog:

  • Using the drop-down list in the Share display with sheet option, the desired base sheet can be selected.

  • By deleting the entry, the shared sheet is no longer a shared sheet.





Note

A base sheet (with existing shared sheets) can be merged with another base sheet, in which this base sheet is selected again.



Both the base sheet as well as its shared sheets are merged into the specified base sheet.



The redundant, copied base sheet (was switched to a shared sheet) must then be manually deleted.
