Compare Project Files (Graphical comparison of E3.series Projects)

In E3.series it's possible to compare two project states with each other and highlight the differences graphically.



To be able to search for revision marks in two different projects, the following files must be available:



The storage location of these files must be defined in the call up parameters. The following call up parameters are available for this:



Parameters

Description

/compareoldfile

Displays the path, where the old E3.series project is located.
Format: [.e3s]

/comparenewfile

Displays the path, where the new E3.series project is located.
Format: [.e3s]

/compareconfigfile

Displays the path, where the configuration file is located.
Format: [.ini]

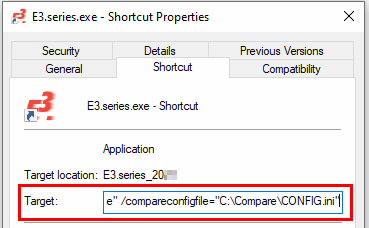

Create a shortcut with the E3.series.exe file and insert the following to the properties of the shortcut in Target:

"\...\Zuken\E3.series_<version>\E3.series.exe" /compareoldfile="Path_old_ Project\Old_Project.e3s" /comparenewfile="Path_new_Project\New_Project.e3s" /compareconfigfile="Path_Configurationfile\Configurationfile.ini"





If you now execute the shortcut, the comparison is started and the [.e3s] comparison file with the revision marks opens. All changes are listed in the Results Window.

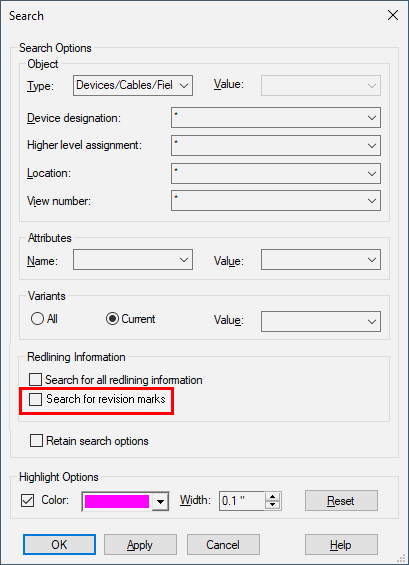

To display these revision marks once again (e.g. if something else has been searched for in the meantime), there is the check box Search for revision mark in the section Redliner Information in the Search dialog (called up using Edit → Search...).





Search

Search for revision marks

Note



When checked, changes between two projects are highlighted in color.

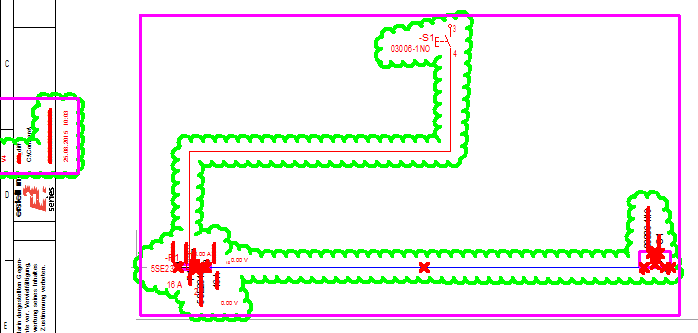

  • Changes (Delete / Move / Insert / Change Size) on objects are displayed as cloud around appropriate objects:

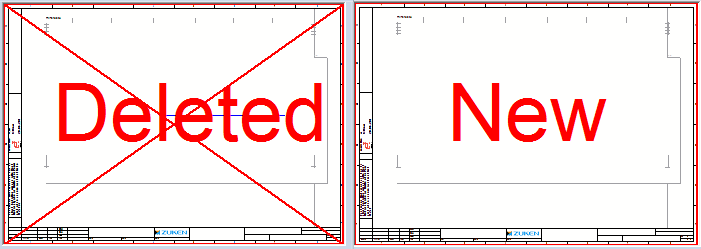

  • Deleted and added sheets are displayed as rectangles within the sheet tree:





Settings in the Configuration File

Diverse settings for the revision marks can be defined in the configuration file.



The following section describes a configuration file with examples. If no entry is given, the predefined default value is used.



Parameters

Entry
General (Section [General])

This section can be used to define general settings for graphical comparisons.

LevelConfigurationFile

Is used to define the storage location of a display setting file .vis.



With the help of the display setting file the saved level settings are considered for the evaluation. Hidden levels are not evaluated.



Example

LevelConfigurationFile = "C:\Temp\level.vis"

Languages

Is used to define the language, which shall appear for the translated texts in the E3.series output format. A comma is used as a separator ","



Possible values for languages

american english, british english, deutsch, francais, italiano, japanese, nederlands, polski, português, russian, swedish, turkish



Example

Languages = deutsch,francais,american english

Sheets

Is used to define the sheets, which shall be compared using sheet GIDs or structure node GIDs. If no entry is given, all sheets are compared.



Example

Sheets = 0-5-0-6, 0-5-0-7, 0-4-5-6

ResultFile

Is used to define whether all sheets or only changed sheets shall be output:



Complete = All sheets (predefined by default)

ChangedOnly = Only changed sheets

ShowProgressDialog

Is used to define whether a progress bar shall be displayed:



True = Progress bar is displayed (predefined by default)

False= Progress bar is not displayed

LogDebugMessages

Is used to define whether DEBUG-messages shall be written to the LOG-file:



True = DEBUG-messages are written to the LOG-file

False= No DEBUG-messages are written to the LOG-file (predefined by default)

Key

This parameter is optional and supports the values Gid and Name.



If the parameter is not assigned, the following is valid Key = Gid.



Name = The sheet name is used for assignment.

Gid = The gids are used for assignment.



Only projects can be used which stem from each other.
Text types for the graphical comparison (Section [TextTypesForGraphicalCompare])

Is used to define optional text types as additional search criteria for the graphical comparison. If the value of a given text type has changed, the sheet is included in the comparison.

This section is used to display all text types from the E3.series database as parameter.

Number of text type
Example '1109'

Text type name



Example

24=Sheet number



Note

Unless otherwise defined, the text type 1109 is used as default.
Settings for the graphical comparison (Section [Settings])

Is used to define E3.series settings for the graphical comparison.

The following entries are predefined and used later as information for E3.RevisionManagement

DISPLAY_OPEN_PINS

3

DISPLAY_IE_REPRESENTATION

0

DISPLAY_CONNECTION_TYPES

0
Texts (Section [Texts])

Is used to define settings for the revision mark texts .

FontColor

Is used to define the text colors.



Note

All 255 colors of the E3.series color definition are available. The color information appears as a hex value.



Example

FF0000 (Predefined by default)

FontSize

Is used to define the text size.



Example

10 (Predefined by default)

FontStyle

Is used to define the text font style.



Example

normal (Predefined by default)

bold

italic

FontScalingFactor

Is used to define a scaling factor for the texts.



Example

2.0

TextOffset

Is used to define a minimum space [in mm] to the changed text.
Deleted Lines (Section [Delete Line])

A changed object is displayed with a continuous line. This line can be configured in this section.

LineColor

Is used to define the color for deleted lines.



Note

All 255 colors of the E3.series color definition are available. The color information appears as a hex value.



Example

FF0000 (Predefined by default)

LineWidth

Is used to define the line width for the deleted lines as HTML color code.



Example

1.0 (Predefined by default)

LineStyle

Is used to define the line style for the deleted lines as HTML color code.



Example

solid (Predefined by default)

dash

dotted

dashdotted

Revision Marks (Section [Revision Marks])

The borders of revision marks can be configured in this section.

Style

Is used to define the display format of revision marks.



Example

Cloud (Predefined by default)

Polygon

LineColor

Is used to define the color for revision mark borders.



Note

All 255 colors of the E3.series color definition are available. The color information appears as a hex value.



Example

FF0000 (Predefined by default)

LineWidth

Is used to define the line width of revision marks.



Example

1.0 (Predefined by default)

LineStyle

Is used to define the line style for revision marks.



Example

solid (Predefined by default)

dash

dotted

dashdotted

Margin

Is used to define the margin [in mm] to the bordered box.



Example

0.4 (Predefined by default)
Sheet Marks (Section [Sheet Marks])

This section can be used to configure the display of deleted or added sheets.

LineColor

Is used to define the color for the border lines.



Note

All 255 colors of the E3.series color definition are available. The color information appears as a hex value.



Example

FF0000 (Predefined by default)

LineWidth

Is used to define the line width for the sheet marks.



Example

10.0 (Predefined by default)

LineStyle

Is used to define the line style for the sheet marks.



Example

solid (Predefined by default)

dash

dotted

dashdotted

FontName

Is used to define the font for the sheet marks.



Example

Arial (Predefined by default)

FontColor

Is used to define the font color for the sheet marks.



Note

All 255 colors of the E3.series color definition are available. The color information appears as Hex-value.



Example

FF0000 (Predefined by default)

FontSize

Is used to define the font size for the sheet marks.



Example

4 (Predefined by default)

FontStyle

Is used to define the font style for the sheet marks.



Example

bold

italic

underline

strikeout

FontRatio

Is used to define the text width for the sheet marks.



Example

normal

narrow

wide

NewDrawing

Is used to define the text which shall be displayed on a newly generated sheet.



Example

New Sheet

DeletedDrawing

Is used to define the text which shall be displayed on a newly generated sheet.



Example

Deleted Sheet

Color and Degree of filling (Section [Hatch])

Is used to configure colors and degrees of filling for objects.

LineColor

The color and filling color of changed graphics can be defined here.



Example

LineColor=0x0000FF

Suppress display of deleted objects (Section [Result Options])

In this section it is possible to set whether deleted objects are displayed in the graphical comparison and how deleted objects are highlighted in the comparison project. The highlighting can be combined with one another.

BaseProject

The parameter specifies which project is used as the base project for the graphical comparison.



The following values are possible:

  • OldFile: The project specified under /compareoldfile is used as the base project.

  • NewFile: The project specified under /comparenewfile is used as the base project.

ShowDeleted

The parameter specifies whether deleted objects are displayed in the comparison file.



The following values are possible:

  • true: Deleted objects are displayed in the comparison file. The default value for ShowDeleted is true.

  • false: Deleted objects are not displayed in the comparison file. This parameter has an influence on the graphical comparison only if BaseProject = NewFile is defined in the configuration.

MarkDeleted

The parameter specifies whether deleted objects are highlighted in the comparison file.



The following values are possible:

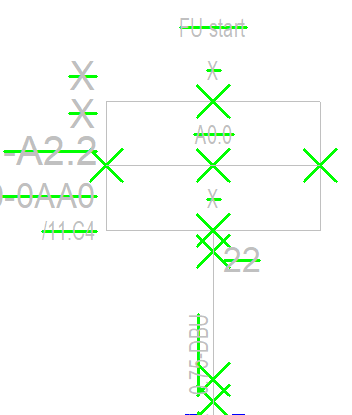

  • true: Deleted objects are marked by an x in the comparison file:





    The default value for MarkDeleted is true.

  • false: Deleted objects are not marked in the comparison file. This parameter has an influence on the graphical comparison only if BaseProject = NewFile is defined in the configuration.

EncloseDeleted

The parameter specifies whether deleted objects are highlighted with the graphic type Cloud in the comparison file.



The following values are possible:

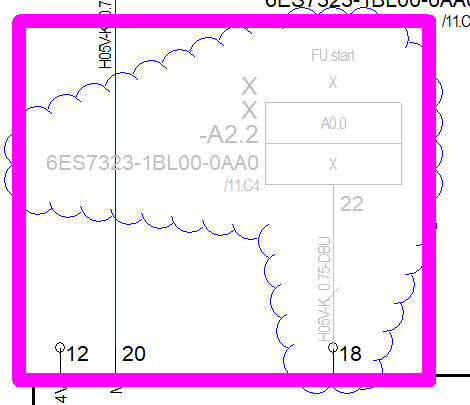

  • true: Deleted objects are highlighted with the graphic type Cloud in the comparison file:





    The default value for EncloseDeleted is true.

  • false: Deleted objects are not highlighted with the graphic type Cloud in the comparison file. This parameter has an influence on the graphical comparison only if BaseProject = NewFile is defined in the configuration.
