Assign Cable

The dialog Assign Cable can be selected only within the Cabling Table.

  • For this, right-click on a line within the table and select the context menu command Assign Cable...



Note

  • If the context menu command is executed in the Device Level, the cable's conductors are assigned to the complete device.

  • If the context menu command is executed in the Pin Level, one cable conductor is assigned to the pin.

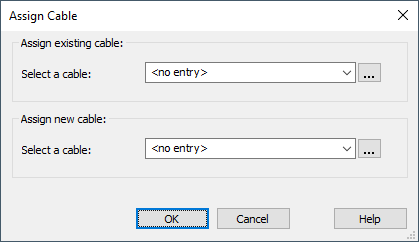

Executing this context menu command opens the Assign Cable dialog:





Assign Cable
Assign existing cable

Select a cable

All cables are displayed in the drop-down list, which fulfill the following prerequisites in the project:

  • The cable has at least as many conductors as the number of pins available on the connection line.

  • The conductors of the cable fulfill the cross-section specifications of the pins.

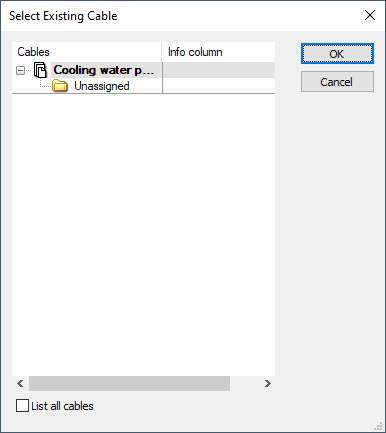

Clicking on this button opens the Select Existing Cable dialog:





All usable cables within a project are displayed in the form of a tree structure here.



Note

When a cable is selected, the cable conductors are always placed in predefined order. Thus, always the next free conductor is used, irrespective of whether a specific conductor has been selected already or not.



By checking the check box List all cables all cables in the project are displayed (as well as already placed).
Assign new cable

Select a cable

All cables within a project and from the database are displayed in the drop-down list, which fulfill the following prerequisites:

  • The cable has at least as many conductors as the number of pins available on the connection line.

  • The conductors of the cable fulfill the cross-section specifications of the pins.

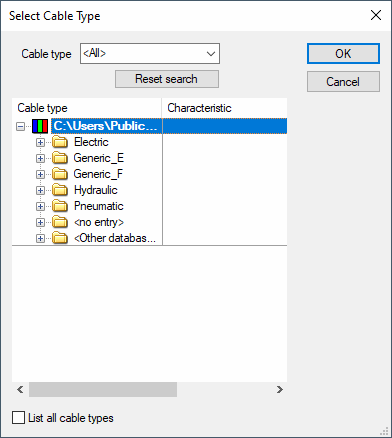

Clicking on the button opens the Select Cable Type dialog:





The following cables are displayed here in the form of a tree structure:

  • all usable cable types (number of conductors / cross-sections that meet the pin requirements) from the database

  • all usable cables (number of conductors / cross-sections that meet the pin requirements) within a project



By checking the check box List all cable types all cable types from the database and the project are displayed.
