Connection Properties - Connect Lines

To display/modify the properties of a connection line,

• right-click on the line and select Connection Properties from the displayed context menu. To select more than one line for modification, hold down the shift key, then left-click on each of the desired lines and right-click on the final line to display the context menu.

• Or left-click on a connection line to highlight it (or for multiple lines, left-click on each line while holding down the 'shift' key) and select Format -> Connection Properties on the Main Menu bar.

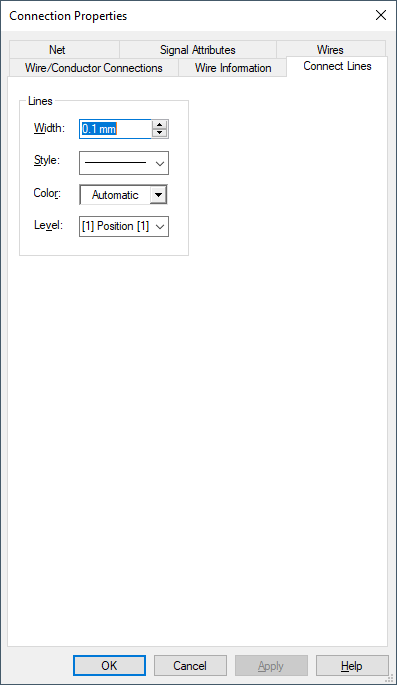

  A dialog box appears in which you can modify the properties of the connection line.







Connect Lines
Width	Defines the line width (thickness) of the connection line.   Note Lines with a width of 0 mm are displayed and printed!
Style	Defines the line style to be used, selected from the drop down list.   Note The line style of a curve connection cannot be changed.
Color	Defines the color for the connection line.   If 'Automatic' is selected, the color defined in the Color Control dialog box will be used.
Level	Defines the drawing level on which the connection lines will be placed. Levels range from 1..256 ... can be hidden and displayed globally
