Intuitive Design Capabilities

Simplifying the Learning Curve

Simplify and Accelerate

Leverage eCADSTAR’s design capabilities to simplify and accelerate the design process. With the digitally connected library, intuitive schematic capture, and tools to accelerate PCB layout engineers spend less time manipulating the tool and more time doing what they do best, innovate creative solutions for today’s technological challenges.

Intuitive Design

Digitally Connected Library

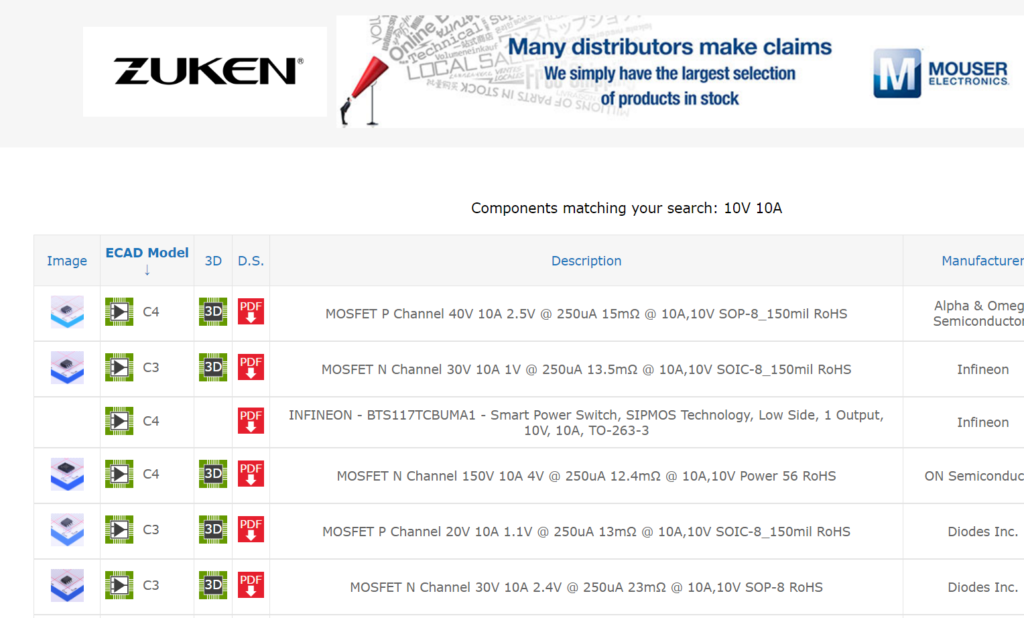

The digitally connected library enables immediate access to hundreds of thousands of ready-made library parts from the top component manufacturers. In addition to being design-ready with symbols and footprints, pricing and availability information is also presented.



Intuitive Schematic Capture

eCADSTAR schematic capture makes use of all the expected ECAD paradigms such as hierarchy blocks, design variants, and easy-to-share projects to permit a fast rise up the learning curve and an easy-to-adopt experience.

Accelerate PCB Layout

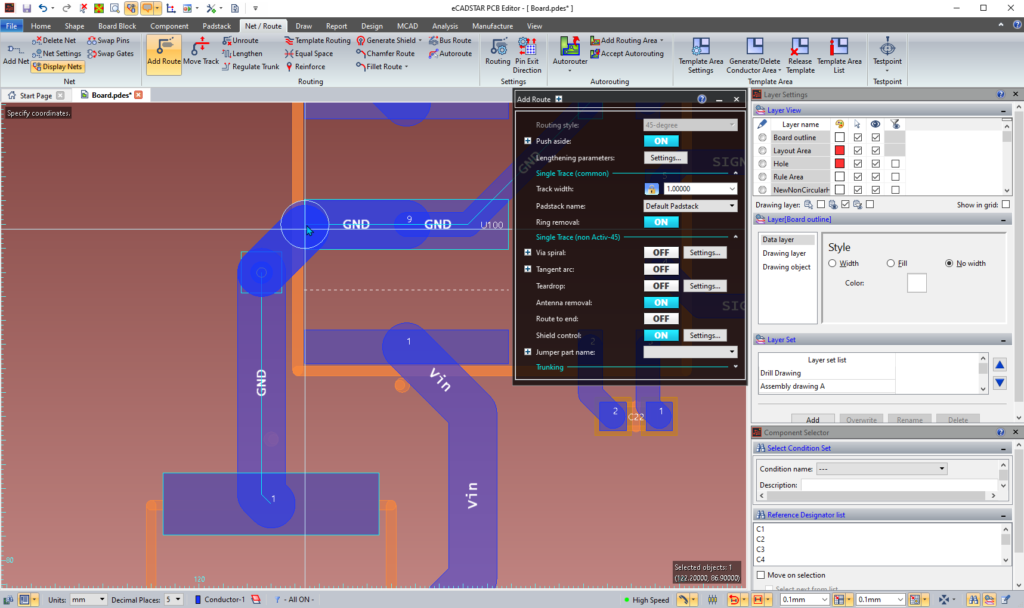

Conventional boards are easy enough to layout, but high-speed designs require the use of layout techniques and paradigms such as differential pair routing and matched lengths that can be challenging. eCADSTAR makes this easy and transparent with automated and semi-automated routing tools that enable strict compliance to high-speed design rules without sacrificing layout time.


High Performance at a Low Cost

Basic pricing begins at $3995 for a perpetual node-locked license.

See eCADSTAR in Action

Take 30 minutes for a quick eCADSTAR introduction. Just let us know what you want to see.
