Add to Existing Assemblies / Create New Assemblies

Example 1 - (Project with assembly | Clipboard with device)

Starting situation

• There is an assembly in the project with the device designation -A1. In the clipboard there is a device with the same designation -A1.
• Both elements have an identical symbol (ZUK11-60-84)



The check box Add to existing assemblies/create new assemblies is deactivated.

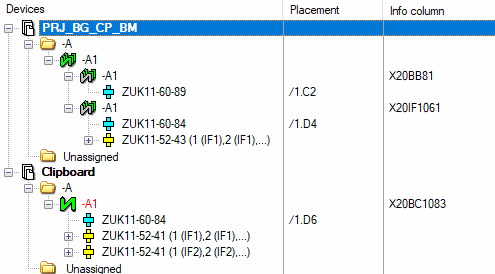

The command Merge all non-colliding cannot be executed in the clipboard. This device is correspondingly displayed with a red-colored device designation in the clipboard.





The check box Add to existing assemblies / create new assemblies is activated.



The command Merge all non-colliding can be executed in the clipboard.

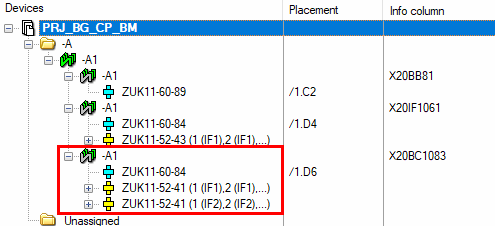

After executing the command Merge all non-colliding, the device is added from the clipboard as an additional element in the project assembly.





Example 2 - (Project with device | Clipboard with assembly)

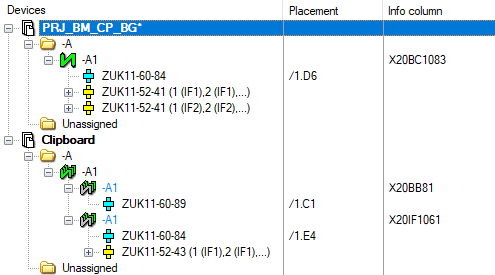

Starting situation

• There is a device in the project with the device designation-A1. In the clipboard there is an assembly with the same designation -A1.

• Both elements have an identical symbol (ZUK11-60-84)



The check box Add to existing assemblies / create new assemblies is deactivated.



The command Merge all non-colliding cannot be executed in the clipboard.



Assemblies with assembly elements having the same name in the clipboard are correspondingly displayed by a red-colored device designation.





The check box Add to existing assemblies/create new assemblies is activated.



The command Merge all non-colliding can now be executed in the clipboard.

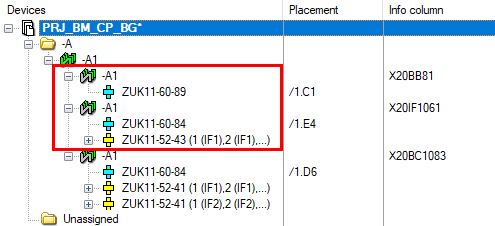

The command Merge all non-colliding was executed in the clipboard.
