Multilingual Descriptions - Wire Kinds

To edit multilingual descriptions in Database Editor mode

• start the Database Editor, select the Format -> Multilingual Descriptions command from the Main menu bar and

• switch to the Wire Kindstab.

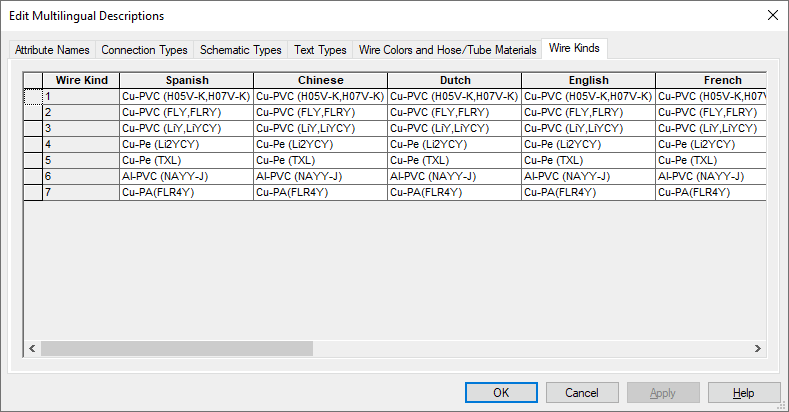

  The following dialog box is displayed:







Wire Kinds
Wire Kind	Represents the unique number that describes a wire's properties in detail. This column cannot be edited.
Language	Double-clicking in the corresponding row enables editing. Additionally, a column can be moved to any position using Drag&Drop.   Double-clicking between two columns automatically adjusts the columns to the optimal column width (Excel-like). Double-clicking in the column header sorts ascendingly or descendingly.   The description texts are saved to the project in all languages and are used dependent on the user interface language defined.
